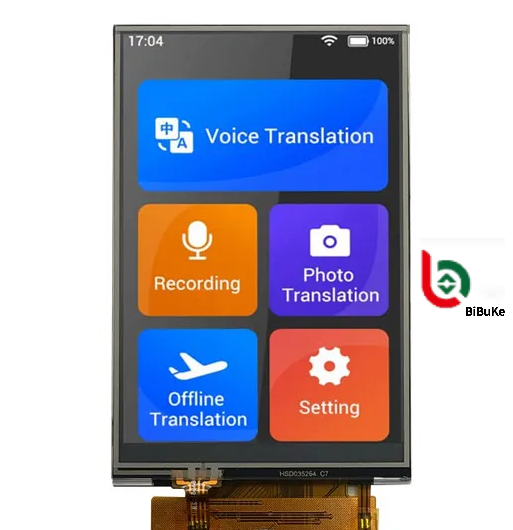

3.5-inch TFT LCD with Resistive Touch Panel | 320×480 16-bit
Parallel Interface
Description
| Product: | 3.5 Inch TFT LCD | Resolution: | 320 × 480 Pixels (RGB) |
|---|
| Interface: | 16-bit Parallel (DBI Type B) | Outline Dim.: | 54.48*84.71*3. 25 Mm |
|---|
| Viewing Direction: | 12 O’clock | Touch Screen: | With Resistive Touch Panel |
|---|
| Driver IC: | ILI9488 | Contrast Ratio: | 250:1 |
|---|
| Touch Durability: | 1,000,000+ Input Cycles | Surface Luminance: | 300 Cd/m² (typical) |
|---|
| Operating Temp.: | -20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
|---|
Here we provide a detailed introduction to this 3.5-inch TFT LCD
resistive touch screen (with a resolution of 320×480 and a 16-bit
parallel interface). We also include the usage and real photos.
Product Core Introduction
This is a mature and versatile color display touch module,
combining thin-film transistor (TFT) liquid crystal technology with
4-line resistive touch solution. It adopts a 16-bit parallel (8080
MCU) interface. It is a commonly used human-computer interaction
component in embedded development and industrial/consumer devices.
Basic Specifications: 3.5-inch diagonal, effective display area
approximately 48.96×73.44 mm; resolution 320 (horizontal) × 480
(vertical) pixels; 16-bit RGB capable of presenting 65K true
colors; resistive touch is single-point precise touch, can be
operated with fingers, gloves, or touch pens, unaffected by humid /
oily environments; the driving IC is commonly ILI9488, ST7796,
ILI9486, etc., paired with XPT2046 touch control chip; the working
voltage is mostly 3.3V (some compatible with 5V level conversion),
the working temperature often reaches -20℃ to +70℃, suitable for
most indoor and outdoor scenarios.
Advantages of 16-bit Parallel Interface: Compared with SPI serial
interface, the parallel bus has faster data throughput, enabling
rapid screen refresh and dynamic video display, suitable for
interactive interfaces requiring immediate response; the interface
pins include data D0-D15, chip select, read/write, reset, etc.,
which can directly match mainstream MCU development boards such as
STM32, Arduino Mega.
Structural Features: The module integrates LCD panel, backlight
unit, resistive touch layer and driving PCB, with a relatively thin
overall thickness (about 3mm), easy to install; some models come
with FPC flexible ribbon cable or straight pin insertion,
supporting vertical / horizontal software display direction
switching.
Core application scenarios
Embedded development and maker projects: As an external screen for
Arduino Mega and STM32 development boards, it is used for the
control panel of 3D printers, the debugging interface of robots,
the prototype of home automation central control, and quickly
realizes visual interaction and parameter adjustment.
Industrial control equipment: Suitable for the human-machine
interface of small PLCs, the on-site display terminal of frequency
converters/sensors, the screen of scanning guns for warehouse
logistics, and stable display of data in dusty and
temperature-differential industrial environments and supporting
touch operations.
Medical portable devices: Applied to the display screens of blood
glucose meters, electrocardiogram monitors, portable ultrasound
equipment, clearly presenting detection data and operation menus.
Resistance touch supports operation with medical gloves, meeting
the needs of medical scenarios.
Vehicle-mounted and security terminals: Used for small-screen
navigation in vehicles, tire pressure monitoring displays, vehicle
audio and video control panels, as well as access control systems
and small monitoring hosts' local operation interfaces.
Consumer electronics and instruments: Applicable to handheld POS
machines, portable multimeters, electronic dictionaries, early
education devices, etc., balancing color display and low-cost,
high-reliability touch experience.
FAQ:
1. I want the LCD display 8 digits and the outline size is
65x30x2.8mm………?
Answer: No problem. Firstly, please kindly send us your
specification/ drawing paper
If you have not the specification, you can also provide your samples; we will recommend the suitable
one
if it is standard products. Or we can customize for you based on
your own requirement.
2.This LCD is just what we want, but it is big size, do you have
any smaller size? And the display content need to be changed a little.
Answer: For the segment type LCD module, if you need modify the
outline size or display content,
a new LCD glass module is need. We have to open new tooling for you.
3. This LCD display is HTN type, but I want STN type,can you make?
Answer: That’s all right . we can change for you as per you request.
4. I want customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing paper. If you have
not, please advise me the outline size
of the LCD display, display information( Glass thickness, Polarizer, Display Type, Connector mode,
Storage Temp. Operating Temp. Supply Voltage, Viewing direction, drive condition), we can customize for you.
5. What is leading time for tooling?
Answer: General speaking, it will cost 15 to 25 days after drawing
paper confirmation and tooling charge payment,
we can report you the exact time when you confirm the drawing paper.
6. Can you send us samples for checking?
Answer: Yes,. Samples order is available.
7. What is the Leading Time?
Answer: If we have stock for the standard ones, the leading time is
one day after payment. If it is the mass production for
special ones, the leading time is about 15-30 days. suppose we can
finish earlier, we will report the information in advanced.
